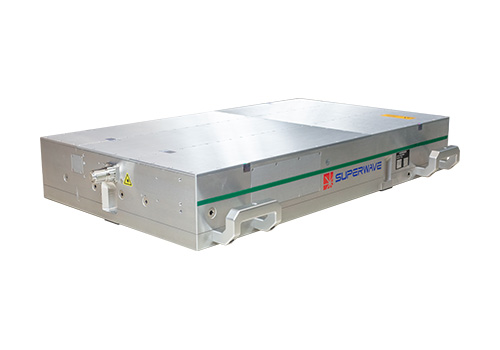

Hercules 300 Series
Pulse Duration <400fs;
Average power 120W-300W;
Pulse Energy 120μJ-2000μJ;
Wavelength 1030nm/515nm
Specifications
Technical performance
External dimensions
| Product Model | Hercules-1030-200 | Hercules-1030-300 | Hercules-515-120 |
| Center Wavelength | 1030±5 nm | 1030±5 nm | 515±3 nm |
| Power | 200 W@100 kHz | 300 W@1 MHz | 120 W@1 MHz |
| Repetition Rate | 1 Hz～2 MHz | 1 Hz～2 MHz | 1 Hz～2 MHz |
| Pulse Energy | 2 mJ | 300 μJ | 120 μJ |
| Power Stability | <1.0%(8 hours,RMS) | <1.0%(8 hours,RMS) | <1.0%(8 hours,RMS) |
| Pulse Duration | <400 fs | <400 fs | <350 fs |
| Beam Quality | TEM₀₀，M²≤1.3 | TEM₀₀，M²≤1.3 | TEM₀₀，M²≤1.3 |
| Beam Circularity | >90% | >90% | >90% |
| Beam Diameter | 3.0±0.5 mm | 3.0±0.5 mm | 2.0±0.5 mm |
| Burst Mode | 1～10 | 1～10 | 1～3 |
| Dimensions | 980*560*153 mm³ | 980*560*153 mm³ | 980*560*153 mm³ |
| Trigger Mode | PSO/POD/Gate mode, and TTL trigger | PSO/POD/Gate mode, and TTL trigger | PSO/POD/Gate mode, and TTL trigger |
| External Power Control | 0~5 VLinear control | 0~5 VLinear control | 0~5 VLinear control |
| Warm-up Time | ≤15 min | ≤15 min | ≤15 min |
| Electrical Requirements | AC 100～240 V/50～60 Hz | AC 100～240 V/50～60 Hz | AC 100～240 V/50～60 Hz |
| Environment Humidity | <60% RH@25 ℃ | <60% RH@25 ℃ | <60% RH@25 ℃ |
| Environment Temperature | 22-30℃ | 22-30℃ | 22-30℃ |
| Cooling | Water circulation cooling | Water circulation cooling | Water circulation cooling |
|
Typical IR femtosecond laser autocorrelation trace 200W/100 kHz |
Typical IR picosecond laser beam quality 200 W/100 kHz |
|
